Ref. MN-SUP-STD-008

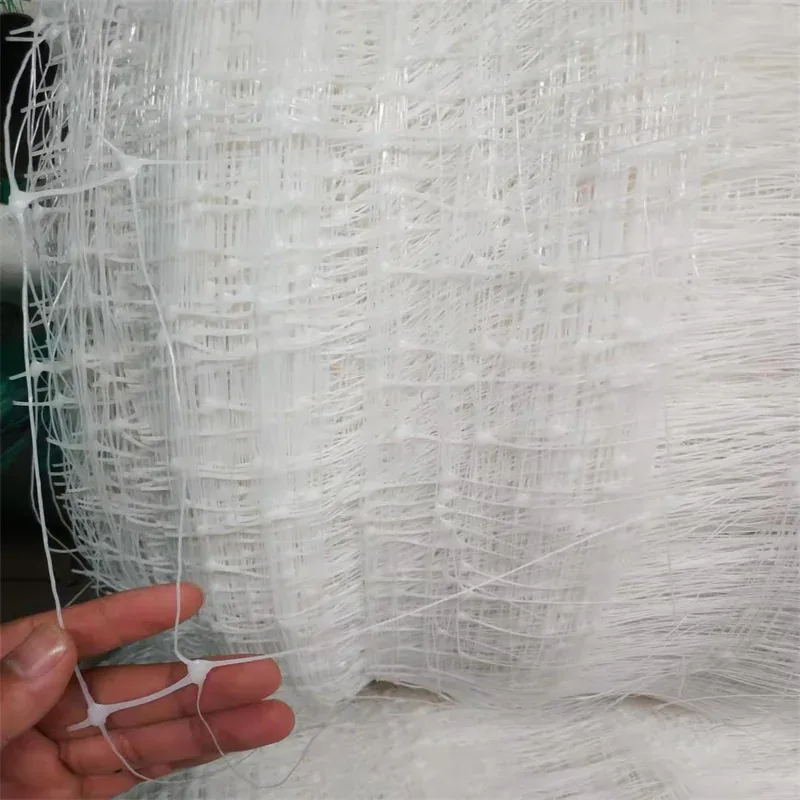

HDPE UV plant support / trellis netting, 8 gsm
8 g/m²
Request a quote for this spec → Family 05 · Plant Support & Trellis Netting
Plant support and trellis netting that guides crops and cuts labour
Plant support and trellis netting, specified for your crop
In short.
Support netting keeps climbing crops upright, improves airflow and makes harvest easier. The right aperture and roll format depend on the plant and the row layout. We match support netting from real catalog specifications and coordinate quotes with vetted manufacturing partners.
Tap any photo to enlarge
Specifications
| Material | HDPE, UV-treated |
|---|---|
| Weight | 8 gsm |
| Roll width | 1-10m |
| Roll length | 10-100m |
| Colors | White, green, black, red |
| Claimed lifespan | 5 years |
Sourced from our manufacturing partners' catalog. Final specification is confirmed on your quote.
At a glance
- 1 Documented configurations
- 6 Catalog specifications
When the span is wider than the roll
Netting is made to the width of the machine that knits it, not to the width of your block. When the span is wider, the joint has to be made somewhere. There are only two places it can happen, and a quote should tell you which one you are buying.
Catalog width for this family: 1-10m. Anything wider than that is a joint, made in the field or made at the factory.
| Where the joint is made | What you receive | What it costs you |
|---|---|---|
| On site, by your crew | Strips at catalog width, overlapped and fixed in the field. | Installation days, fixings, and one more line for the wind to work on at every joint. None of it appears in a price per square meter. |
| At the factory, before it ships | Panels assembled to the width you need to cover, delivered as one piece. | A stated line on the quote, plus its effect on packing, freight volume and the minimum quantity that makes the run worth setting up. |
What we will not write down before it is confirmed A maximum assembled width. Achievable width, added cost, added lead time and the minimum quantity are confirmed with the manufacturing partner and stated on your quote before you order. Where a span cannot be served in one piece, we say so and quote the strip layout instead.
What to send us The width you need to cover, not the roll width you think you should ask for. The quote form has a field for the span, and a second one for how you want that width made up.
Example sourceable specifications 1
Example sourceable specifications, documented from manufacturer catalogs. Final material, dimensions, MOQ, packing, lead time and delivery terms are confirmed on a documented quote. These are examples of what can be sourced, not stock and not tied to a single manufacturer.
Use it when
You need to keep climbing crops such as beans, peas, cucumbers and flowers upright, to improve airflow and ease harvest.
Do not use it when
You need insect exclusion or hail protection: the aperture is far too open for either.
Typical applications

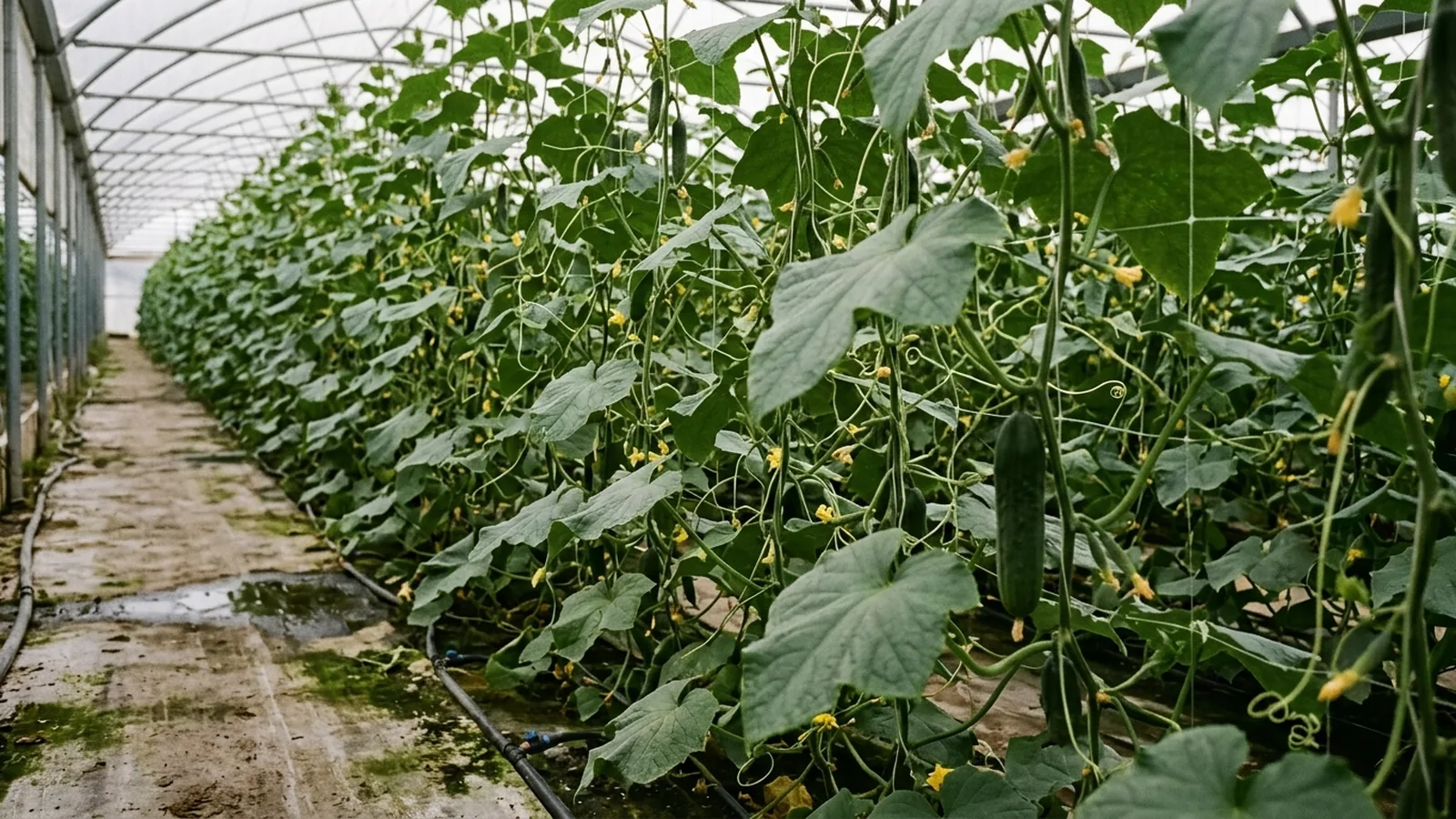

Climbing vegetables (beans, cucumbers, peas)Greenhouse trellisingFlower and vine supportField row support
How sourcing works
- Send your requirement through the quote form: product, dimensions, quantity, destination.
- We clarify the specification with you and coordinate with vetted manufacturing partners.
- You receive a documented quote; first personal reply within 2 business days.
- On order: production, quality checks per agreed scope, and shipping coordination.
Frequently asked questions
What aperture or mesh should I choose for climbing plants?
It depends on the plant and how it grips the net. Larger square apertures suit beans, peas and cucumbers; a finer support pattern suits lighter vines. The catalog we reference states no aperture for its support netting, so this page publishes none: tell us the crop and row layout and we confirm the aperture in writing on the quote.
What roll widths and lengths are available?
Referenced widths run from 1 to 10 m and lengths from 10 to 100 m, with custom formats possible. State your row height and run length in the request and we confirm feasibility.
Is support netting reusable season to season?
HDPE support netting is designed for multi-season use when handled and stored properly. For the referenced netting, UV-treated HDPE, the supplier claims a 5-year lifespan. That is a claim for typical conditions, not a warranty, and service life is confirmed per specification on the quote.
What is the minimum order quantity?
MOQ depends on the exact product and format. Send your requirement and we confirm the applicable MOQ in the quote.
Read before you specify
- Netting roll width: how joints and overlap change your order roll widths decide the number of joints in the field, and joints are where installations fail.
- Mesh count vs aperture: why 50 mesh is not enough reading a mesh specification without guessing which system the supplier used.
- How to write a netting RFQ that gets accurate quotes the first time the seven fields any netting request needs, whatever the family.
Six free tools do the sizing these guides explain: see the tools.
